Helm / openstack-helm¶
helm¶
개념¶
Kubernetes의 패키지 매니저
- 링크: https://helm.sh/
- Kubernetes 애플리케이션을 정의, 설치 및 업그레이드 할 수 있는 chart를 만들고 관리할 수 있도록 함.
- chart 작성 표준에 맞춰서 chart를 작성한 후 repository에 넣어서 관리하고 kubernetes에 배포
internet setting¶
일단 오픈소스를 할 때는 인터넷을 연결해봅시다.
$ sudo vi /etc/resolv.conf
# openstack-helm 기본 image 다운로드를 위해 nameserver 추가
nameserver 8.8.8.8
helm local repo setting¶
https://docs.helm.sh/using_helm/#quickstart
tiller server 설치 init
$ helm init --client-only
localhost에 helm chart repository server up serve
$ helm serve . &
add repo
$ helm repo add local http://localhost:8879/charts
dependencies:
- name: helm-toolkit
repository: http://localhost:8879/charts
version: 0.1.0
remove repo
$ helm search
$ helm repo remove stable
helm chart 만들어보기¶
chart 작성 표준
wordpress/
Chart.yaml # A YAML file containing information about the chart
LICENSE # OPTIONAL: A plain text file containing the license for the chart
README.md # OPTIONAL: A human-readable README file
requirements.yaml # OPTIONAL: A YAML file listing dependencies for the chart
values.yaml # The default configuration values for this chart
charts/ # A directory containing any charts upon which this chart depends.
templates/ # A directory of templates that, when combined with values,
# will generate valid Kubernetes manifest files.
templates/NOTES.txt # OPTIONAL: A plain text file containing short usage notes
helm create
$ cd ~
$ helm create my-chart
$ ls -al my-chart/
total 16
drwxr-xr-x. 4 centos centos 93 Feb 21 10:51 .
drwx------. 14 centos centos 4096 Feb 21 10:51 ..
drwxr-xr-x. 2 centos centos 6 Feb 21 10:51 charts
-rw-r--r--. 1 centos centos 104 Feb 21 10:51 Chart.yaml
-rw-r--r--. 1 centos centos 333 Feb 21 10:51 .helmignore
drwxr-xr-x. 2 centos centos 106 Feb 21 10:51 templates
-rw-r--r--. 1 centos centos 1062 Feb 21 10:51 values.yaml
helm install
# helm install [CHART] [flags]
$ helm install my-chart --name test-chart
NAME: test-chart
LAST DEPLOYED: Thu Feb 21 12:09:57 2019
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1/Service
NAME AGE
test-chart-my-chart 9s
==> v1beta2/Deployment
test-chart-my-chart 9s
==> v1/Pod(related)
NAME READY STATUS RESTARTS AGE
test-chart-my-chart-69957864df-dkcdb 0/1 ContainerCreating 0 5s
NOTES:
1. Get the application URL by running these commands:
export POD_NAME=$(kubectl get pods --namespace default -l "app.kubernetes.io/name=my-chart,app.kubernetes.io/instance=test-chart" -o jsonpath="{.items[0].metadata.name}")
echo "Visit http://127.0.0.1:8080 to use your application"
kubectl port-forward $POD_NAME 8080:80
확인
$ helm list
NAME REVISION UPDATED STATUS CHART APP VERSION NAMESPACE
my-chart 1 Thu Feb 21 12:03:53 2019 DEPLOYED my-chart-0.1.0 1.0 default
$ kubectl get po
NAME READY STATUS RESTARTS AGE
my-chart-85847467b4-fx4bn 0/1 ErrImagePull 0 23s
수정
$ vi my-chart/value.yaml
...
image:
repository: nginx
tag: stable
pullPolicy: IfNotPresent
...
업그레이드
# helm upgrade [RELEASE] [CHART] [flags]
$ helm upgrade test-chart my-chart
Release "test-chart" has been upgraded. Happy Helming!
LAST DEPLOYED: Thu Feb 21 12:11:43 2019
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1/Service
NAME AGE
test-chart-my-chart 1m
==> v1beta2/Deployment
test-chart-my-chart 1m
==> v1/Pod(related)
NAME READY STATUS RESTARTS AGE
test-chart-my-chart-69957864df-dkcdb 0/1 ImagePullBackOff 0 1m
test-chart-my-chart-84b7cd789c-45c5s 0/1 ContainerCreating 0 1s
NOTES:
1. Get the application URL by running these commands:
export POD_NAME=$(kubectl get pods --namespace default -l "app.kubernetes.io/name=my-chart,app.kubernetes.io/instance=test-chart" -o jsonpath="{.items[0].metadata.name}")
echo "Visit http://127.0.0.1:8080 to use your application"
kubectl port-forward $POD_NAME 8080:80
확인
$ kubectl get po -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE
test-chart-my-chart-84b7cd789c-45c5s 1/1 Running 0 78s 10.233.24.102 test0-2 <none>
$ kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.233.64.1 <none> 443/TCP 9h
test-chart-my-chart ClusterIP 10.233.74.213 <none> 80/TCP 57s

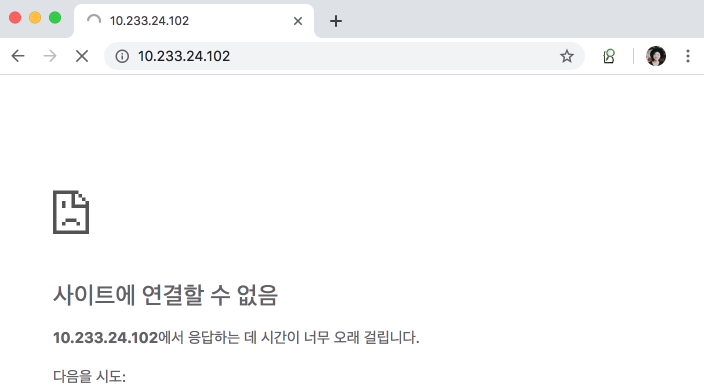

# connect to webserver
노드포트 적용
$ helm upgrade test-chart my-chart --set service.type=NodePort
Release "test-chart" has been upgraded. Happy Helming!
LAST DEPLOYED: Thu Feb 21 12:21:05 2019
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1/Service
NAME AGE
test-chart-my-chart 11m
==> v1beta2/Deployment
test-chart-my-chart 11m
==> v1/Pod(related)
NAME READY STATUS RESTARTS AGE
test-chart-my-chart-84b7cd789c-45c5s 1/1 Running 0 9m
NOTES:
1. Get the application URL by running these commands:
export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services test-chart-my-chart)
export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT
확인
$ kubectl get po -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE
test-chart-my-chart-84b7cd789c-45c5s 1/1 Running 0 44m 10.233.24.102 test0-2 <none>
$ kubectl get svc
[centos@test0-1 ~]$ kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.233.64.1 <none> 443/TCP 9h
test-chart-my-chart NodePort 10.233.74.213 <none> 80:30129/TCP 45m

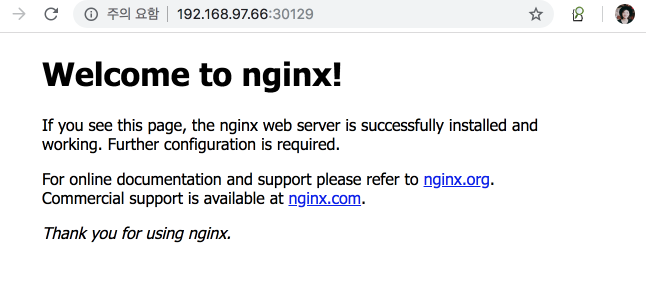

$ kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
test0-2 Ready master,node 9h v1.12.3 192.168.97.66 <none> CentOS Linux 7 (Core) 3.10.0-957.1.3.el7.x86_64 docker://18.6.1
test0-3 Ready master,node 9h v1.12.3 192.168.97.68 <none> CentOS Linux 7 (Core) 3.10.0-957.1.3.el7.x86_64 docker://18.6.1
test0-4 Ready master,node 9h v1.12.3 192.168.97.53 <none> CentOS Linux 7 (Core) 3.10.0-957.1.3.el7.x86_64 docker://18.6.1
helm fetch
$ helm repo add stable https://kubernetes-charts.storage.googleapis.com
$ helm search
...
stable/terracotta 1.0.0 5.5.1 Terracotta Ehcache is an improved version of Java's de fa...
stable/testlink 4.0.3 1.9.19 Web-based test management system that facilitates softwar...
stable/tomcat 0.2.0 7 Deploy a basic tomcat application server with sidecar as ...
...
$ helm fetch stable/tomcat
$ ls -al
...
drwxr-xr-x. 4 centos centos 111 Feb 21 12:11 my-chart
-rw-rw-r--. 1 centos centos 2705 Feb 21 11:57 my-chart-0.1.0.tgz
drwxrwxr-x. 15 centos centos 4096 Feb 21 06:32 tacoplay
-rw-rw-r--. 1 centos centos 6727062227 Feb 21 06:43 tacoplay-test.tar.gz
-rw-r--r--. 1 centos centos 3763 Feb 21 13:26 tomcat-0.2.0.tgz
$ tar zxvf tomcat-0.2.0.tgz
tomcat/Chart.yaml
tar: tomcat/Chart.yaml: implausibly old time stamp 1970-01-01 00:00:00
tomcat/values.yaml
tar: tomcat/values.yaml: implausibly old time stamp 1970-01-01 00:00:00
tomcat/templates/NOTES.txt
tar: tomcat/templates/NOTES.txt: implausibly old time stamp 1970-01-01 00:00:00
tomcat/templates/_helpers.tpl
tar: tomcat/templates/_helpers.tpl: implausibly old time stamp 1970-01-01 00:00:00
tomcat/templates/appsrv-svc.yaml
tar: tomcat/templates/appsrv-svc.yaml: implausibly old time stamp 1970-01-01 00:00:00
tomcat/templates/appsrv.yaml
tar: tomcat/templates/appsrv.yaml: implausibly old time stamp 1970-01-01 00:00:00
tomcat/README.md
tar: tomcat/README.md: implausibly old time stamp 1970-01-01 00:00:00
$ ls -al tomcat
total 16
drwxrwxr-x. 3 centos centos 77 Feb 21 13:28 .
drwxrwxr-x. 3 centos centos 44 Feb 21 13:28 ..
-rwxr-xr-x. 1 centos centos 299 Jan 1 1970 Chart.yaml
-rwxr-xr-x. 1 centos centos 4141 Jan 1 1970 README.md
drwxrwxr-x. 2 centos centos 85 Feb 21 13:28 templates
-rwxr-xr-x. 1 centos centos 1038 Jan 1 1970 values.yaml
helm delete
$ helm delete --purge $CHART_NAME
tiller log 확인
kubectl logs -f TILLER-POD-NAME -n kube-system
openstack-helm¶
개념¶
컨테이너화된 OpenStack을 Helm을 사용하여 Kubernetes상에 구축하고, Self-Healing, Upgrade, 확장등의 라이프 사이클 관리를 할 수 있도록 하는 프로젝트
#1 Container화된 OpenStack 서비스들을 Kubernetes에 설치하기 위해서 필요한 정보들을 Helm Chart에 정의 Helm Chart는 사용될 컨테이너에 대한 정보와 위치, 적용할 Configuration 값들, 그리고 Kubernetes에 어떠한 형태로 올릴지에 대한 정보를 모두 가지고 있다. (참조: 현재 TACO에서는 OpenStack 서비스들에 대한 Container화는 OpenStack Kolla 프로젝트를 통해서 만들어지고 있다)
#2 Helm의 Tiller 서버가 Chart에 있는 정보들을 기반으로 Kubernetes API를 호출하여 실제 구축을 수행한다.
#3 Helm을 통해서 단일 서비스 (예: Nova)에 대한 설치, 업그레이드등의 작업을 수행할 수 있으며, 필요한 서비스들만을 조합하여 설치하는 것도 가능하다.
openstack-helm in tacoplay¶
openstack-helm, openstack-helm-infra에 있는 helm chart로 etcd, ingress, mariadb, rabbitmq, memcached, keystone을 배포
helm chart의 위치¶
$ tree -L 2 charts/
charts/
├── openstack-helm
│ ├── barbican
│ ├── ceilometer
│ ├── cinder
│ ├── congress
│ ├── CONTRIBUTING.rst
│ ├── doc
│ ├── glance
│ ├── heat
│ ├── horizon
│ ├── ironic
│ ├── keystone
│ ├── LICENSE
│ ├── magnum
│ ├── Makefile
│ ├── mistral
│ ├── neutron
│ ├── nova
│ ├── rally
│ ├── README.rst
│ ├── senlin
│ ├── setup.cfg
│ ├── setup.py
│ ├── tempest
│ ├── tests
│ ├── tools
│ ├── tox.ini
│ └── zuul.d
└── openstack-helm-infra
├── calico
├── ceph-client
├── ceph-mon
├── ceph-osd
├── ceph-provisioners
├── ceph-rgw
├── doc
├── elastic-apm-server
├── elastic-filebeat
├── elastic-metricbeat
├── elastic-packetbeat
├── elasticsearch
├── etcd
├── falco
├── flannel
├── fluent-logging
├── gnocchi
├── grafana
├── helm-toolkit
├── helm-toolkit-0.1.0.tgz
├── ingress
├── ingress-0.1.0.tgz
├── kibana
├── kube-dns
├── kubernetes-keystone-webhook
├── ldap
├── libvirt
├── lockdown
├── Makefile
├── mariadb
├── memcached
├── mongodb
├── nagios
├── nfs-provisioner
├── openvswitch
├── playbooks
├── postgresql
├── prometheus
├── prometheus-alertmanager
├── prometheus-kube-state-metrics
├── prometheus-node-exporter
├── prometheus-openstack-exporter
├── prometheus-process-exporter
├── rabbitmq
├── README.rst
├── redis
├── registry
├── roles
├── setup.cfg
├── setup.py
├── tiller
├── tools
├── tox.ini
└── zuul.d
helm toolkit¶
openstack-helm, openstack-helm-infra를 사용할 때 필요한 기본적인 툴(function)과 모든 차트에서 공통적으로 사용되는 기능들을 제공하는 toolkit
# helm chart 위치
$ cd ~/tacoplay/charts/openstack-helm-infra/helm-toolkit
$ tree -L 2
.
├── charts
├── Chart.yaml
├── requirements.lock
├── requirements.yaml
├── templates
│ ├── endpoints
│ ├── manifests
│ ├── scripts
│ ├── snippets
│ ├── tls
│ └── utils
└── values.yaml
helm-toolkit 사용 예제
# 모든 openstack service는 db init이 필요
$ cat ~/tacoplay/charts/openstack-helm/keystone/templates/job-db-init.yaml
{{- if .Values.manifests.job_db_init }}
{{- $dbInitJob := dict "envAll" . "serviceName" "keystone" -}}
{{ $dbInitJob | include "helm-toolkit.manifests.job_db_init_mysql" }}
{{- end }}
$ cat ~/tacoplay/charts/openstack-helm/neutron/templates/job-db-init.yaml
{{- if .Values.manifests.job_db_init }}
{{- $dbInitJob := dict "envAll" . "serviceName" "neutron" -}}
{{ $dbInitJob | include "helm-toolkit.manifests.job_db_init_mysql" }}
{{- end }}
helm package를 대신해서 make를 사용
$ cd ~/tacoplay/charts/openstack-helm-infra
$ make helm-toolkit
$ helm search
NAME CHART VERSION APP VERSION DESCRIPTION
local/helm-toolkit 0.1.0
keystone 훑어보기
$ tree -L 2 keystone/
keystone/
├── Chart.yaml
├── requirements.yaml
├── templates
│ ├── bin
│ ├── configmap-bin.yaml
│ ├── configmap-etc.yaml
│ ├── cron-job-credential-rotate.yaml
│ ├── cron-job-fernet-rotate.yaml
│ ├── deployment-api.yaml
│ ├── ingress-api.yaml
│ ├── job-bootstrap.yaml
│ ├── job-credential-setup.yaml
│ ├── job-db-drop.yaml
│ ├── job-db-init.yaml
│ ├── job-db-sync.yaml
│ ├── job-domain-manage.yaml
│ ├── job-fernet-setup.yaml
│ ├── job-image-repo-sync.yaml
│ ├── job-rabbit-init.yaml
│ ├── network_policy.yaml
│ ├── pdb.yaml
│ ├── pod-rally-test.yaml
│ ├── secret-credential-keys.yaml
│ ├── secret-db.yaml
│ ├── secret-fernet-keys.yaml
│ ├── secret-ingress-tls.yaml
│ ├── secret-keystone.yaml
│ ├── secret-ldap-tls.yaml
│ ├── secret-rabbitmq.yaml
│ ├── service-api.yaml
│ └── service-ingress-api.yaml
└── values.yaml
internet disable¶
$ sudo vi /etc/resolv.conf
# nameserver 8.8.8.8
